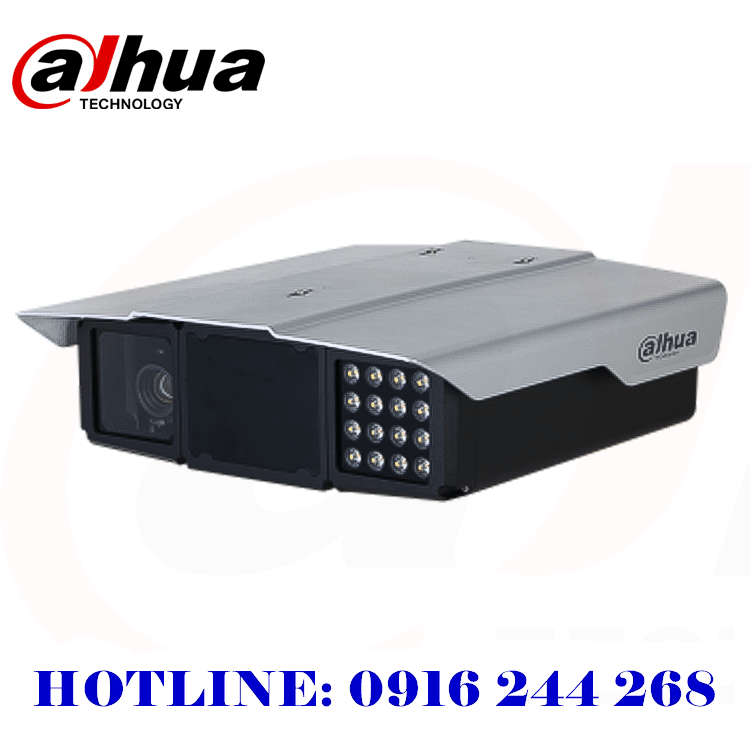

Camera Thông Minh DaHua ITC952-SU2F-PQE-C1R1-LZF1640

Camera

Image Sensor

1″ GS-CMOS

Shutter Mode

Single shutter; Double shutter; Three shutters

Electronic Shutter Speed

50 Hz: Auto/Manual 1/50 s–1/100,000 s
60 Hz: Auto/Manual 1/60 s–1/100,000 s

Noise Reduction

3D NR; 2D NR

S/N

48 dB

WDR

90 dB

Minimum intensity

0.001 lux

Day/Night

Supports ICR auto switch: IR cut-off filter (IRCF) with the polarizing filter is used during the daytime, and switches to the common IR cut-off filter at night

Illuminator

Illuminator Number

16

Illumination Distance

23 m–50 m (75.46 ft–164.04 ft) (adjustable brightness)

Covered Lane

3 lanes

radar

Central Frequency

24.05 to 24.25 GHz

Measurement Accuracy

±2 km/h

Velocity Range

5 to 300 km/h

Tracking Target

Up to 64

Lens

Lens Type

Motorized vari-focal

Focal Length

16 mm–40 mm

Max. Aperture

F1.5

Aperture Type

P iris

Field of View

Horizontal: 20.8°–46.4°
Vertical: 11.1°–25.4°
Diagonal: 23.4°–51.7°

Function

Trigger Mode

Video trigger/Radar trigger

OSD Overlay

Time, location, lane (number/direction), plate (number/color), and more.

Alarm Event

Storage full, storage error, external alarm, no storage card, license plate blocklist, abnormal device attitude, illegal access, network disconnection, and IP conflict

Automatic Network Replenishment (ANR)

Platform, FTP (TF card is required)

Auto Registration

Yes

Intelligence

Target Detection

Motor vehicle; motorcycle

Face Detection

Detects the driver and front-seat passenger of motor vehicles, and motorcycle drivers; extracts face images

ANPR

Recognizes license plate numbers and letters

Vehicle Type Recognition

Vehicle head mode: Large bus, heavy truck, medium truck, sedan, van, light truck, medium bus, SUV, MPV, and pickup
Vehicle tail mode: SUV, large bus, sedan, light truck, pickup, medium truck, van, and heavy truck

Vehicle Color Recognition

White, pink, black, red, yellow, gray, blue, green, orange, purple, brown, and silver gray (color recognition is not supported during the nighttime)

Vehicle Logo

Vehicle head mode: Acura, Alfaromeo, Ashokleyland, Astonmartin, Audi, Baic, Bently, Benz, BMW, Buick, BYD, Cadillac, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daihatsu, Datsun, Dodge, DS, Ferrari, Fiat, Force, Ford, Foton, Geely, GMC, Greatwall, Hino, Honda, Hyundai, Infiniti, Isuzu, Iveco, Jac, Jaguar, Jeep, Kia, Kinglong, Land, Lexus, Lifan, Lincoln, Mahindra, MAN, Maserati, Mazda, Mercury, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rollsroyce, Saab, Scania, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Tesla, Toyota, UD, Volkswagen, Volvo

Motor Vehicle Violation Snapshot

ANPR mode: Wrong-way driving, overspeed, driving slow, crossing the solid white line, crossing the solid yellow line, illegal lane change, not wearing seatbelt, calling while driving, smoking while driving
E-Police mode: Running a red light, wrong-way driving, crossing the white solid line, crossing the yellow solid line, disobeying the direction arrow, illegal left turn, illegal right turn, illegal U-turn (not supported by

side-mounted cameras), and crossing the stop line

Motorcycle Vehicle Violation Capture

Captures traffic violations including carrying passenger, not wearing helmet, and wrong-way driving

Traffic Flow Detection

Generates statistics on vehicle flow, queue length, average speed, lane occupancy, and more

Traffic Event

Detects parking violations of motor vehicles, wrong-way driving, and traffic congestion

Video

Video Compression

H.265; H.264M; H.264H; MJPEG

Video Resolution

4096 × 2160; QFHD (3840 × 2160); 1080p (1920 × 1080); UXGA (1600 × 1200); 720p (1280 × 720)

Video Frame Rate

50 Hz: Maximum 50 fps; default main stream (4096 × 2160@25 fps), sub stream (1600 × 1200@25 fps)
60 Hz: Maximum 30 fps; default main stream (4096 × 2160@25 fps), sub stream (1600 × 1200@25 fps)

Video Bit Rate

H.264: 32 kbps–32768 kbps
H.265: 32 kbps–32768 kbps
MJPEG: 512 kbps–32768 kbps

Bit Rate Control

CBR; VBR

White Balance

Auto/night/custom color temperature

Edge Enhancement

Yes

HLC

Yes

BLC

Yes

Bad Pixel Correction

Yes

Gain Scope

0–100


Composite Image

Combines 1, 2, 3 and 4 images into one composite image

Image Resolution

4096 (H) × 2160 (V) (OSD black background is not calculated in the pixels)

Image Encoding Format

JPEG

Image Tampering Prevention

Watermark and verification are available for videos and images

Network

Network Port

1 × RJ-45 Ethernet port, 10/100/1000 M network transmission

SDK and API

Yes

Security

Authorized username and password, MAC address binding, HTTPS encryption, and network access control

Protocol

IPv4; IPv6; HTTP; TCP; IP; UDP; NTP; DHCP

Interoperability

ONVIF (Profile S/Profile G/Profile T)

Browser

IE: IE 9–IE 11
Chrome: Chrome 41 and earlier
Firefox: Firefox 49 and earlier
Win10 needs to open the browser with administrator rights

Positioning

GPS

Time Synchronization

NTP; GPS

Port

Frequency Source Sync

1, supports synchronizing the camera with the mains electricity

Peripheral Light

6, optocoupler signal output (can be configured as flashing light or LED strobe sync output port, frequency adjustable)

RS-485

1, connects to devices such as signal detector, strobe, continuous light, and all-in-one illuminator

RS-232

1, for serial port debugging

Alarm Output

1 (can be configured as an alarm output port)

General

Power Supply

36 VDC

Power Consumption

≤50 W

Operating Temperature

−40 °C to +65 °C (−40 °F to +149 °F)

Storage Temperature

−40 °C to +70 °C (−40 °F to +154 °F)

Operating Humidity

10%–90%

Storage Humidity

10%–90%

Product Dimensions

435.4 mm × 416.0 mm × 173.8 mm (17.14” × 16.38” × 6.84”) (L × W × H)

Net Weight

7.5 kg (16.53 lb)

Gross Weight

12.5 kg (27.56 lb)

Installation

Center mount; Side mount
