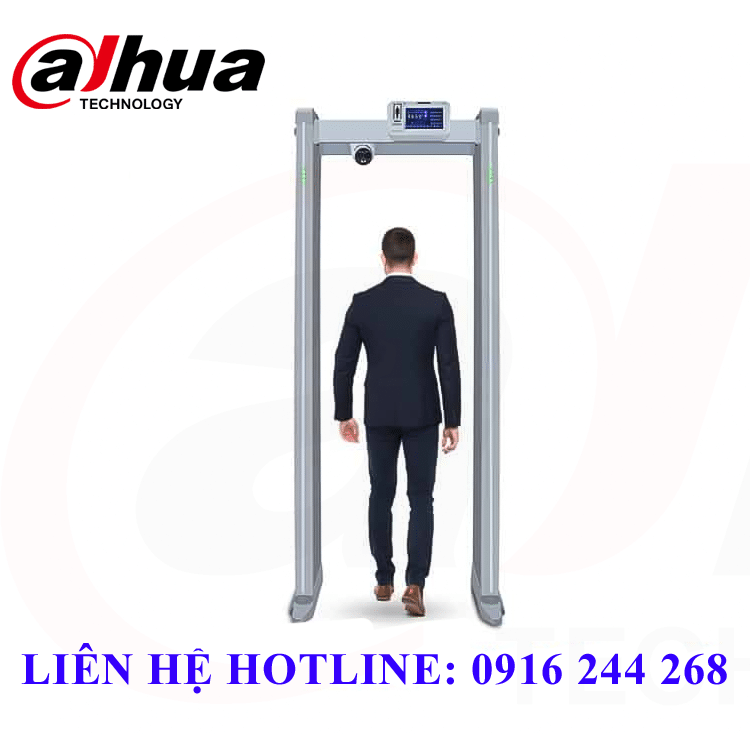

Cổng Dò Kim Loại Đo Thân Nhiệt Dahua DHI-ISC-D718-T

General

Overall Exterior Size

2210 mm × 928 mm × 572 mm (87.0″ × 36.5″ × 22.5″)

Passageway Interior Size

1950 mm × 714 mm × 572 mm (76.8″ × 28.1″ × 22.5″)

Packing Size

2409 mm × 868 mm × 304 mm (94.8″ × 34.2″ × 12.0″)

Net Weight

45 kg (99.2 lb)

Gross Weight

52 (with camera)

Operating Voltage

12V, 100-240V AC Power adapter included in the package

Max Power Consumption

23W

Standby Power Consumption

10W

Operating Temperature

–20°C to +65°C (–4°F to +149°F)

Operating Humidity

0%–95%

Storage Temperature

–20°C to +70°C (–4°F to +158°F)

Storage Humidity

0–95% RH

Working Frequency

1–100 frequencies

Ports

Bottom Panel Port

Aviation power connector, 1 on each side

Bottom Panel Network Port

RJ-45, 1 on each side

Certification

Certifications

GB15210-2018
IEC 60068-2-1
IEC 60068-2-2
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Camera Technical Specification

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

< 50 mK (@f/1.0, 25Hz, 300K)

Focal Length

3.5 mm

Field of View

H: 50.6°, V: 37.8°

Close Focus Distance

0.5 m (1.64 ft)

Effective Distance
Human (1.8 m × 0.5 m)

D: 146 m (479 ft)
R: 38 m (125 ft)
I: 19 m (622 ft)

Effective Distance
Vehicle (4.0 m × 1.4 m)

D: 389 m (1276 ft)
R: 97 m (318 ft)
I: 49 m (161 ft)

Aperture

F1.0

Digital Detail
Enhancement (DDE)

Yes

Digital Zoom

16 ×

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)

Visible

Image Sensor

1/2.7” CMOS

Max. Resolution

2336 × 1752

Pixel

4MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 Lux
Black & white: 0.005 Lux
0 Lux (IR on)

IR Illumination Distance

≥ 30 m (98.43 ft)

IR Illuminator On/Off
Control

Auto; manual

Focal Length

4 mm

Aperture

F1.6

Field of View

H: 71.2°
V: 52°
D: 92.6°

Focus Control

Fixed

Close Focus Distance

1.0 m (3.28 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; intrusion

Advanced Intelligence

Fire detection & alarm

Cold & hot spot trace

Human & vehicle classification

Smoking detection

Call detection

Video and Audio

Video Compression

H.265/H.264M/H.264H/H.264B/MJEPG

Resolution

Thermal:
Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/
VGA (640 × 480)/256 × 192, 1280 × 960 by default
Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by
default
Visual:
Main Stream: 2336 × 1752/1080p (1920 × 1080)/720p
(1280 × 720)/D1 (704 × 576), 2336 × 1752 by default
Sub Stream: 720p (1280 × 720)/D1 (704 × 576)/CIF (352
× 288), 352 × 288 by default

Frame Rate

Thermal
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by
default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by
default; (sub stream) 1fps–30 fps adjustable, 15 fps by
default
Visual
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by
default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by
default; (sub stream) 1 fps–30 fps adjustable, 15 fps by
default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;
UPnP; NTP

Edge Storage

Micro SD card (256 G)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier

User/Host

10

Security

Authorized username and password; attached MAC
address; encrypted HTTPS; IEEE 802.1x; controlled
network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014
FCC:CFR 47 FCC Part15 subpart B; ANSI C63.4-2014

Port

Network

1 10M/100M Ethernet port (RJ-45)

RS-485

1 pair

Power

Power Supply

12V DC±20%/PoE

Power Consumption

Basic: < 6.5W (LED off)
Max: < 13W (LED on, heater on)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Storage Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67, anti-surge 6kV, anti-elctrostatic 6kV (touched by
objects), anti-elctrostatic 8KV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8″ × 4.8″ × 4.41″)

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10″ × 6.10″ × 5.31″)

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)
