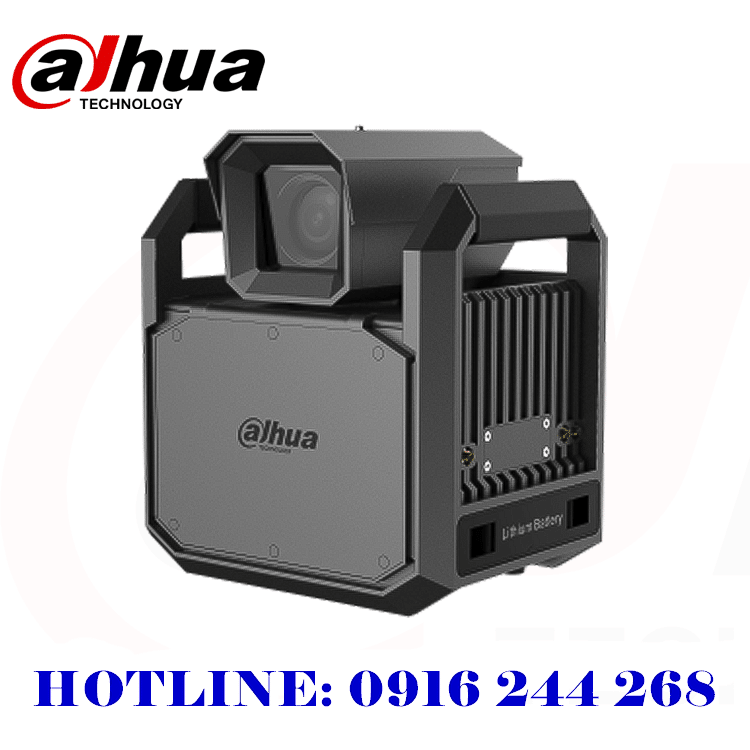

Máy Đo (Bắn) Tốc Độ DaHua HWS1600D

Basic

Snapshot Resolution

16 MP, 5320 × 3032 pixels

Video Resolution

9 MP, 4096 × 2160 pixels

Image Sensor

1.1” GS CMOS

Transmission Mode

TCP/IP, FTP

Image Compression

JPEG

Video Format

H.265/H.264M/H.264H/H.264B/MJPEG

Video Frame Rate

1 fps–30 fps

Lane Coverage

1–4 lane(s)

Speed Measurement Range

5 km/h–300 km/h

Speed Measurement Accuracy

Simulated Speed Measurement Error Range: ± 1km/h

On-site Speed Measurement Error Range:
Vehicle speed <100 km/h: ±2km/h
Vehicle speed ≥100 km/h: ±2%

Overspeed Capture Rate

≥95%

Radar Response Time

30 ms

Lane Recognition Rate

≥95%

Transmit Power

<20 dBm (100 mW)

Storage Capacity

1000 GB (standard), PCIe 2280 M.2 SSD

Radar Frequency

24.00 GHz–24.25 GHz

Beam Width

Horizontal: ±23° (–3 dB), Pitch angle: ±12° (–3 dB)

Port

Data Ports

1 RS-232 port, 1 RS-485 port, 1 1000M Ethernet port, 1 USB3.0 port

Lithium Battery Port

1 port of 14.4 V 12.12 AH lithium battery

Power Input Port

1 24 VDC power input port

Power Output Port

1 12 VDC power output port, with maximum power of 12 W

Flash Sync Port

2 (digital quantity)

LED Strobe Sync Port

1

Lens Mount

C mount

Capture Triggering Mode

Triggered by Radar

Yes

Special Function

License Plate Recognition

≥95%

License Plate Cutout

Yes

Multi-target Tracking and Recognition

Recognizes more than 64 vehicles at distance of

15 m–60 m (49.21 ft–196.85 ft)

Positioning

GPS/BeiDou positioning

Composite Image

Yes, 1, 2, 3 or 4 snapshot (s) can be composited, and composition method can be selected

Image Wireless Transmission

3G/4G, WIFI

Mobile Network Frequency Band

FDD LTE: B1, B3, B5, B7, B8, B20, B28

Auto Registration

Yes

Automatic Network Replenishment (ANR)

Yes

Time Synchronization

Local/GPS/NTP

Speed Overlay

Overlays vehicle speed to the front or rear side of a vehicle in the video image

Video Storage

Records and stores videos of traffic violations by periods

Storage Space

Supports setting picture and video storage quota to ensure enough storage space of pictures

ICR Switch

Day/night ICR switch

Remote Control

Remote control through the web interface or the client

OSD Overlay

Supports overlaying date, time, location, plate number, plate color, model, vehicle speed, speed limit, radar direction, violation code, device No., anti-counterfeit code, and more

Watermark

Watermark verification on the web interface

Image Tampering Prevention

Yes. Watermark is available for pictures and videos

Operating Environment

Operating Voltage

24 VDC; power adapter supports 100 VAC to 240 VAC, 50 Hz–60 Hz

Average Power Consumption

<25 W (in screen saver mode)

Operating Temperature

Lithium battery included: –20 °C to +60 °C (–4 °F to +140 °F)

Lithium battery excluded: –40 °C to +65 °C (–40 °F to +149 °F)

Relative Humidity

20%–90% (RH, non-condensing)

Dimensions

238.0 mm × 196.0 mm × 277.6 mm (9.37” × 7.72” × 10.93”) (L × W × H)

Weight

9.0 kg (19.84 lb)
