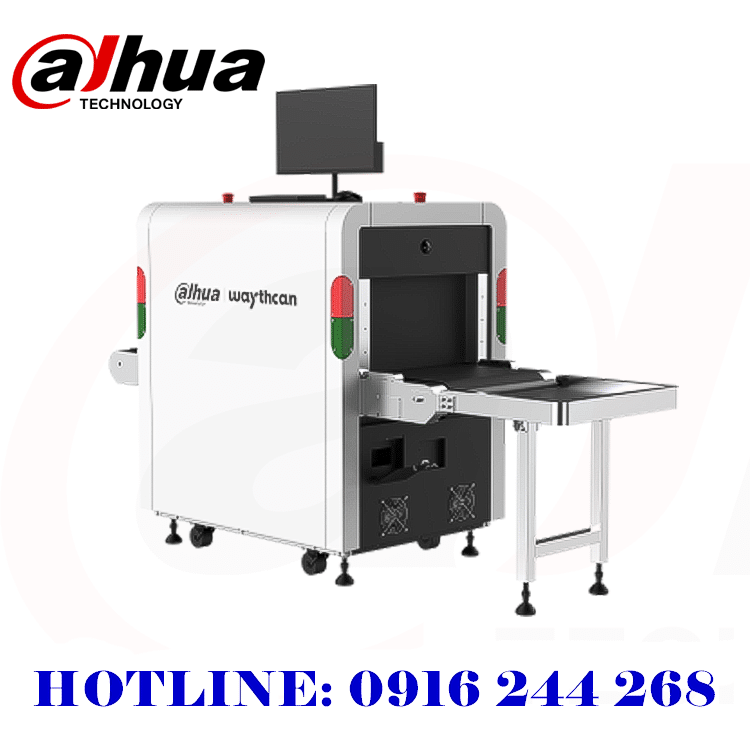

Máy Xray Soi Hàng Hóa DaHua ISC-M5030

System

CPU

Intel dual-core processor

RAM

8 G

Operating System

Embedded Linux OS

User Interface

Local GUI (full functions); Web interface

Basic

Tunnels Size

500mm×300mm

X-ray Tube Anode Voltage

160 kV

X-ray Tube Cooling

Sealed oil bath with forced air

Wire Resolution

Typical: 40AWG(0.08mm); standard: 38AWG(0.1mm) *Measured by Dahua Imaging Test Kit

Penetration(steel)

Typical: 38 mm; standard: 35 mm *Measured by Dahua Imaging Test Kit

Leakage Dose-rate

≤ 0.9 μSv/h (μGy/h)

Noise Level

≤ 65 dB

Conveyor Speed

0.2 m/s

Conveyor Hight

Approx. 666 mm

Maximum Belt Load

170 kg (374.78 lb)

Current Leakage

≤ 0.25 mA

Film Safety

ISO 1600 (33 DIN)

Intelligent Analysis

Preview

Real-time display of X-ray package image and camera image; real-time item intelligent analysis

Item Recognition

Recognizes items and displays AI overlay; the AI overlay box moves with packages

Recognition Types

Recognizes 22 types of objects: Guns, fireworks, spray cans, knives, axes, scissors, lighter fluid, nail polish, bottled liquids, glass bottles, thermos bottles, plastic bottles, handcuffs, nightsticks, brass knuckles, lighters, tools, electronic products, mobile phones, powerbanks, laptops and umbrellas

Danger Levels

High risk, warning, and safe (supports custom configuration according to types of objects)

Event Linkage

I/O alarm, voice prompt, platform alarm and screen notification can be triggered according to danger levels

Image Storage

Stores as much as 1 million images with information on their danger levels and the types of objects detected. Original and analyzed images can both be viewed.

Baggage Search

Search, play back, and export baggage images and linked videos according to time, objects type and more

Report Search

Generate and export reports according to time and object types

Backup

USB/Network

Performance

Self-inspection

Automatically detects system failures and prompts error codes

Image Processing

Enhancement functions include color/black and white, local enhancement, super enhancement, edge enhancement, image scanning, organic stripping, metal stripping , mixture stripping, inverse, high-energy enhancement, low-energy enhancement, light, dark, density threat alert Z7/Z8/Z9, high density alert, AI overlay, vertical flip, pseudo color and more

Image Playback

Supports playback of 30 images

Image Zooming

Zoom in X-ray images up to 64x. Drag the focus position using a mouse or direction- keys

Device Diagnosis

Supports diagnosis of key components such as the detector, motor, IR sensor and special keyboard

Detection Configuration

Key function configuration; image display configuration (vertical flip and max zoom times), scan mode configuration (double direction, forward scan, reverse scan, compulsory scan and power saving mode), baggage counter configuration and person-package linkage configuration

Basic

Graphics Output

2-channel DVI outputs; resolution: Up to 1920 (H) × 1080 (V) @60 Hz

Monitor

1 × 21.5″ monitor

Video Input (Network)

12-channel input (max 4K); 8-channel IPC + 4 PoE (2 PoE by default)

Recording Mode

Offers manual recording and recording plan. Recording plan features continuous recording, alarm event linked recording and no recording

Built-in Disks

Supports up to 4 × 10 T SATA disks and configures 1 × 4 T disk by default

Storage Management

Single; RAID 0/1/5 (Enterprise-level disks are recommended); global hot standby

Ethernet Ports

1 RJ-45 10M/100M/1000M self-adaptive Ethernet port; 4 RJ-45 PoE 10M/100M Ethernet ports

Internet Protocols

HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (Support Dahua IP camera, DVR and more)

Interoperability

ONVIF, SDK and more

Ports

232 Port

1-channel 232 port

Power Port

1-channel port for monitor power supply

USB Port

2-channel USB3.0

Display Port

1-channel DVI outputs

Emergency Stop Button

2 (on the machine body)

Power Button

1 (on the machine top)

Key Switch

1 (on the machine top)

Indicator Light

On the machine:
Power indicator: Turns solid green when the machine is working and flashes during updates and when an error occurs
X-ray indicators: Turn solid red when X-ray is triggered and turns off when X-ray is turned off
On the operating keyboard:
Key switch indicator: Turns solid green when the switch is turned on and turns off when the switch is turned off
Power button indicator: Turns solid green when the power button on the operating keyboard is pressed on. Light turns off when the machine is powered off
Press button indicators: Flashes green when one button is pressed on
X-ray indicator: the red light is always on when X-ray is turned on, but not when X-ray is turned off

Regular

Power Supply

220–240 VAC, 50/60 Hz; 100–130 VAC, 50/60 Hz (optional)

Typical Power Consumption

450W

Maximum Power Consumption

1 KW

Intelligent Temperature Control

Detects the temperature of main board and HDD and automatically adjusts fan speed to make it work stably and quietly

Operating Temperature

0 °C to +45 °C (32 °F to +113 °F)

Operating Humidity

0%–95% (RH), non-condensing

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

0%–95% (RH), non-condensing

Dimensions

1665 mm × 766 mm × 1237 mm (65.55″×30.16″×48.70″)

Package Size

1,824 mm × 1,044 mm × 1,448 mm (71.81″×41.10″×57.00″)

Net Weight

360 kg (793.66 lb)

Gross Weight

490 kg (1080.27 lb)

Installation Mode

Ground mount
